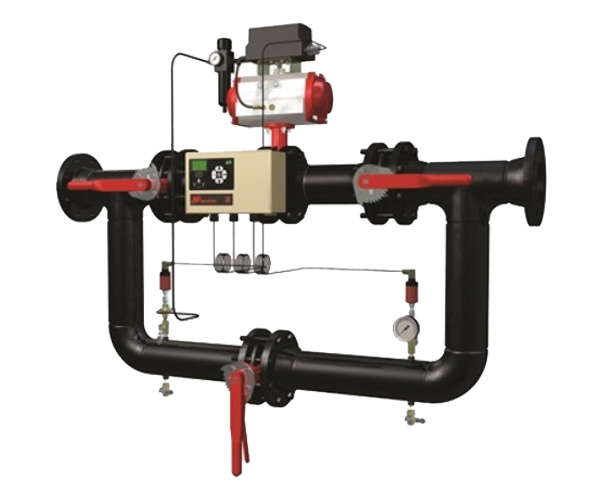

IntelliFlow Electronic Flow Controller
IntelliFlow, Ingersoll Rand’s line of electronic flow controllers, creates a buffer between air supply and air demand. This allows for more effective use of air storage and a continuous dynamic response todemand fluctuations to actively stabilize system pressure, thereby eliminating the requirement to turn on extra compressors or to elevate pressures.
Features
High capacity, low pressure drop
3-valve manual bypass with fittings
Forward, backpressure and combination control
Electronic control (standard)
Mounted c-UL NEMA 12 panel
Multiple pressure set points
Auxiliary contacts
Mounted dual pressure sensors
Network communication ready
X-Series visualization ready
Complete mounted & wired assembly
| Model | CCN | Connection Size In/Out (in) | Flow scfm min | Flow scfm max | Lenth (in) | Width (in) | Height (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| IX-02 | # 23473192 | 2 | 207 | 835 | 39.25 | 15 | 33.869999999999997 | 180 |
| IX-03 | # 23473200 | 3 | 580 | 2664 | 43.87 | 16.62 | 38.5 | 250 |
| IX-04 | # 23473218 | 4 | 1077 | 4868 | 58.5 | 18.059999999999999 | 44.35 | 440 |
| IX-06 | # 23473226 | 6 | 2320 | 10700 | 64.5 | 20.43 | 51.25 | 650 |
| IX-08 | # 23473234 | 8 | 4144 | 19200 | 70.680000000000007 | 70.680000000000007 | 53.06 | 860 |
| IX-08CDN | # 23485980 | 8 | 4144 | 19200 | 70.680000000000007 | 70.680000000000007 | 53.06 | 860 |
